D-100 Air Hydraulic Drilling Machine

D-100 Automatic Air Hydraulic Drilling Machine

Take S45C work pieces as an example, the D-100 Automatic Air Hydraulic Drilling Machine is design for makingφ1- φ10 holes. Support Multi-spindle drilling head.

Inquire Now

  • Technical Data

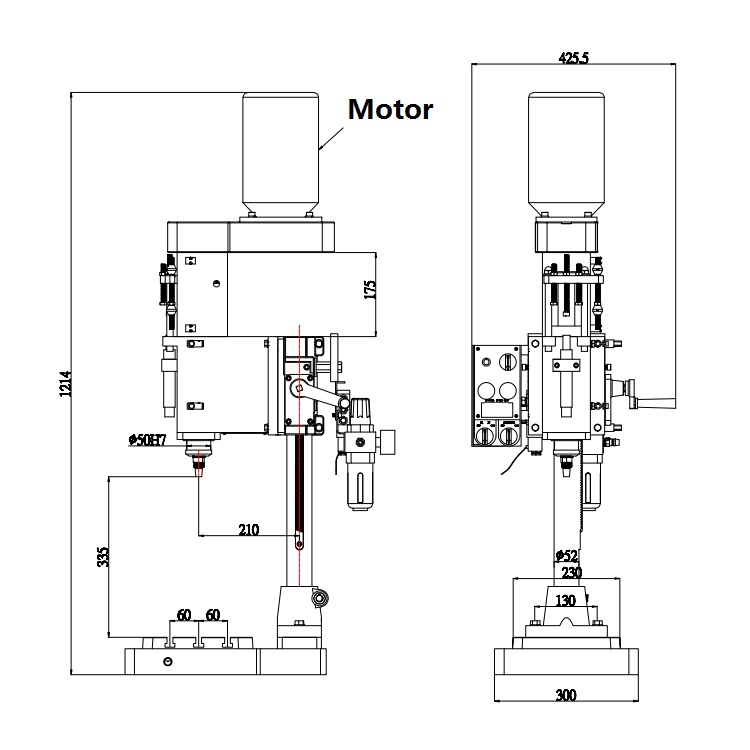

  • Dimensions
  • Products Featrue
  • Accessries
  • Application Gallery
Model No.D-100   Hydraulic drilling machine
Drilling Capacityφ10mm   (S45C)
Spindle Travel85mm
Cutting Travel25mm,   50mm
Motor Power1HP(750W)   2P
Spindle Rotation50HZ   3000~6000
transfer methodH.T.D-5M
Vertical weightAbout   96KG
Horizontal WeightAbout   45KG
Warrantya   year free warranty,lifetime maintenance
what’s in boxMachine   * 1, Tool box * 1
Price OtherCooling   cycle table


Applicable to all kinds of special machinery, support multi-axis device

Built with independent motor fan forced cooling to avoid high temperatures

Simple rotary button to set fast feed stroke and full stroke

A timer function, you can do long high-speed continuous loop operation

Homemade push-button switches and special motors have been thoroughly tested, durable

Automated operation, is the best choice for beginners and unmanned aircraft

D100 d.jpg

Applicable to all kinds of special machinery, support multi-axis device

Built with independent motor fan forced cooling to avoid high temperatures

Simple rotary button to set fast feed stroke and full stroke

A timer function, you can do long high-speed continuous loop operation

Homemade push-button switches and special motors have been thoroughly tested, durable

Automated operation, is the best choice for beginners and unmanned aircraft
