D-19 Automatic Drilling Machine

Take S45C work pieces as an example, the D-19 Automatic Air Hydraulic Drilling Machine is design for makingφ1- φ19 holes. Support Multi-spindle drilling head.

Inquire Now

  • Technical Data

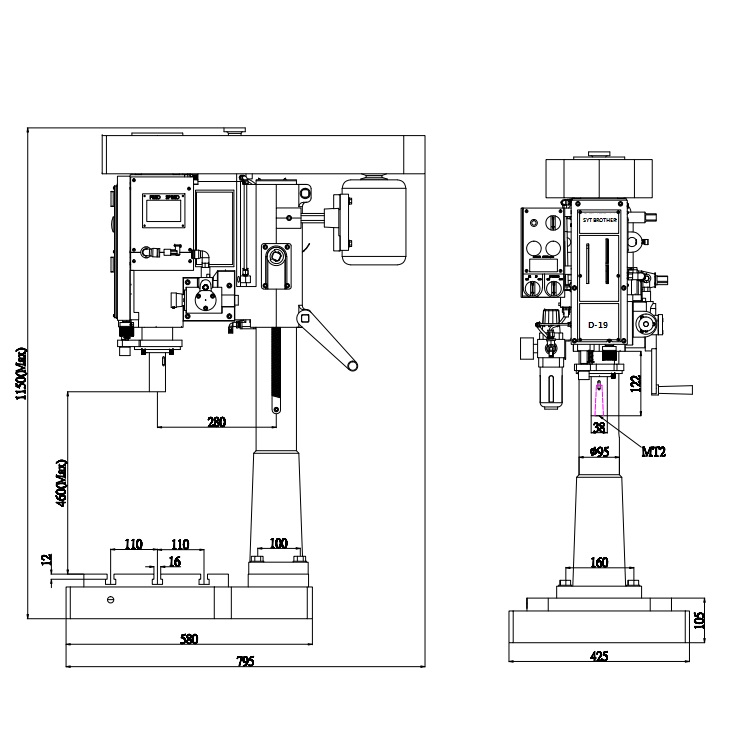

  • Dimensions
  • Products Featrue
  • Accessries

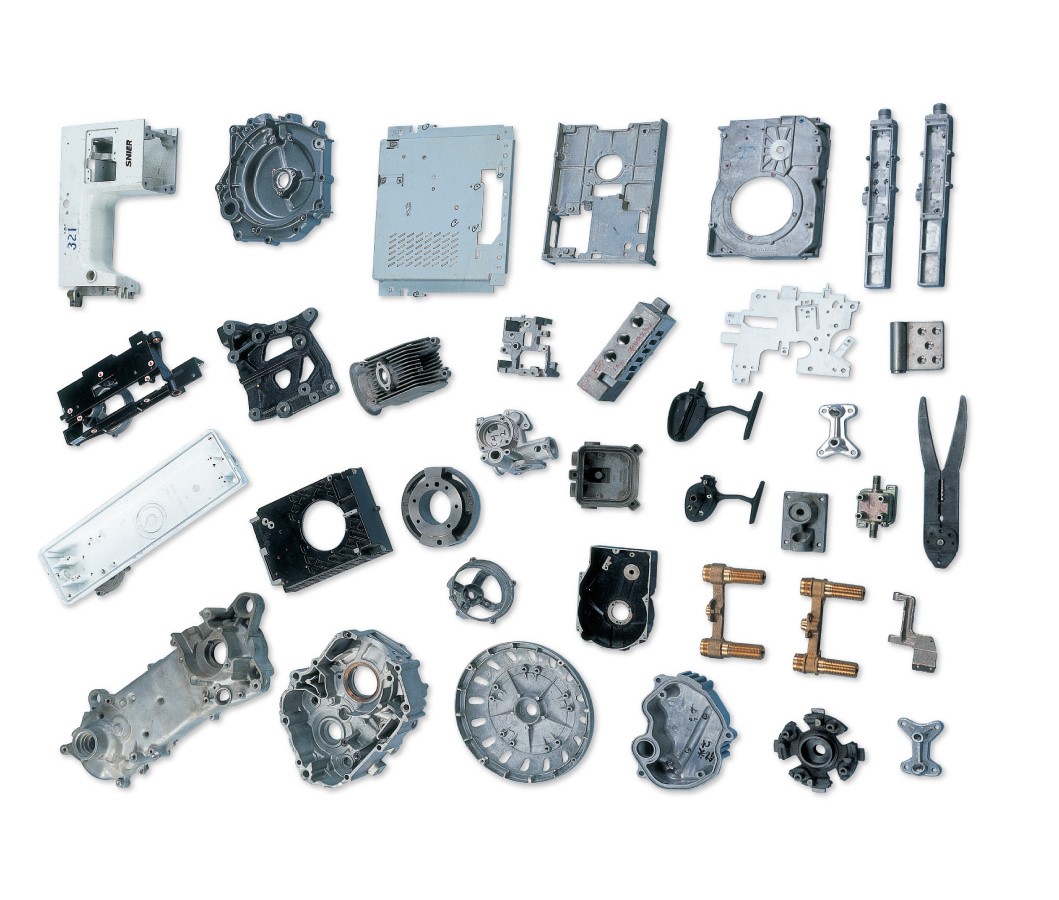

  • Application Gallery
Model No.D-19   Automatic Drilling Machine
Spindle Travel110mm
Drilling Capacityφ19mm   (S45C)
Motor Power1HP(750W)   4P
Common Pressure5KGF/CM²
Spindle Rotation50HZ   45075013002000rmp
    60HZ 375,625,1080,1670rmp
Fast feed range95mm
Cutting speed mm / min40   above
Swing over mm430mm
Movable head up and down distance mm300
Table size340*340mm
Spindle taperMT2   ,  JT6 1/2#
WeightAbout   198KG
Warrantya   year free warranty,lifetime maintenance
what’s in boxMachine   * 1, Tool box * 1, Drilling Chuck *1,CT-12.
Price OtherCooling   cycle table


Applicable to all kinds of special machinery, support multi-axis device

Built with independent motor fan forced cooling to avoid high temperatures

Simple rotary button to set fast feed stroke and full stroke

A timer function, you can do long high-speed continuous loop operation

Homemade push-button switches and special motors have been thoroughly tested, durable

Automated operation, is the best choice for beginners and unmanned aircraft

D19 d.jpg

● Pneumatic hydraulic changes in the way

Due to the use of pneumatic air hydraulic oil pressure becomes the way, and the traditional use

of machinery in different ways, so the use of this latest approach, the cylinder thrust

communicated directly to the cutting spindle, so the action is very correct. Another conversion

speed cutting tool, cutting speed adjustment knobs 40mm / min to the appropriate processing,

can make reaming process.

● automatic cycle

Press the activation switch, fast feed can be operated automatically, when the cutting tool to

quickly return to their original positions and stop cutting cycle. The models provided with

mechanical timer circuit, if installed timer (to be purchased separately), the precise timing of

the production cycle, the relative increase work efficiency.

● stroke adjustment

Fast feed stroke and full stroke, the stroke adjustment knob of the scale based on the set, this

simple to complete. Another strange cutting speed adjustment knob to the closed position, can

be accurately measured as a center and set up instruments and other preparatory work.

● multiaxial. Automation

Because it is automatic cycle of relationship, it can be applied to all kinds of special machinery.

In addition, the use of the spindle is fixed to the flange, the device can also be multi-axis.


D-19 drilling machine.jpg
