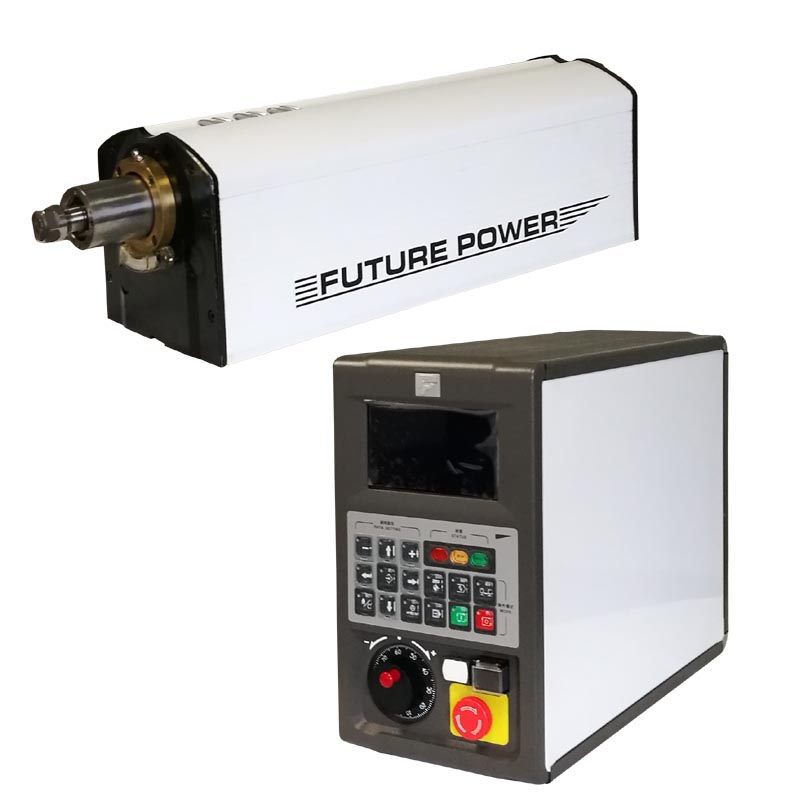

SYT A750 Miniature Threads Tapping Machine

Take S45C workpieces as en example, the SYT A750 Miniature Threads Tapping Machine tapping machine is design for making M0.5-M5 thread. Can be used to match multi-axis device.


Inquire Now

  • Products Featrue
  • Technical Data
  • Detailed Presentation

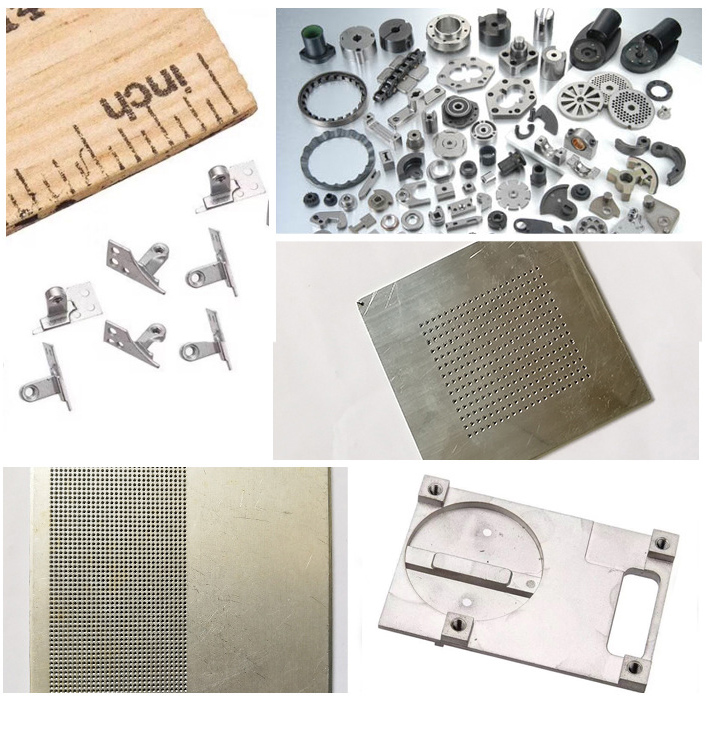

  • Application Gallery

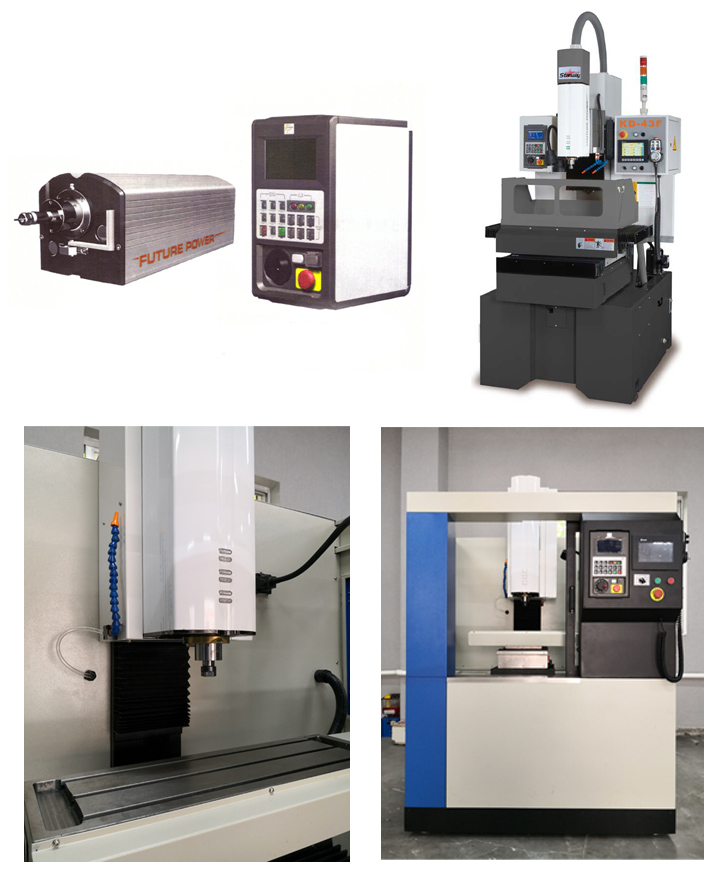

  • Standard Equipment

Automatic torque control allows for multi-step adaptive tapping operations.

Ultra high speed peck-drilling with feed rate up to 5 m/min.

Drilling and tapping are accomplished at a time without need of tool change.

Smart abnormal torque checking and repetitive machining not only provides tool-wear montioring,but also prevent defective parts from flowing out.

Capable of repetitive tapping for high ahesion materials,such as ceramic,without

 double threads tapping problem.

Dialogue,matrix and teaching input without need of G,M code input.



ItemSYT A750
Travel(X/Y/Z)335/170/330mm
Rapid travel10M/min
Woking table630*220mm
Spindle travel100mm
Spindle taperER16
Max spindle speed4000prm
Tapping capacityM0.5-M5
Drilling capacityφ0.5-φ6mm
Motor(X/Y/Spindle)400W*400W*750W
Power supply220V  6A
Machine weight50KG
Machine space required(L*W*H)
